Elenos Indium ETG1000 1000W

KShs 750,000.00

Categories: , Brand:

Key features:

  • Output Nominal Power 1000 W adjustable
  • Operating band 87.5 ÷ 108 MHz
  • RS232/RS485 Yes. Connector DB9 female
  • Points of measure RF Sample – MPX Monitor
  • Displayed Parameters More than 50 parameters displayed on a wide
    graphic 0-LED screen

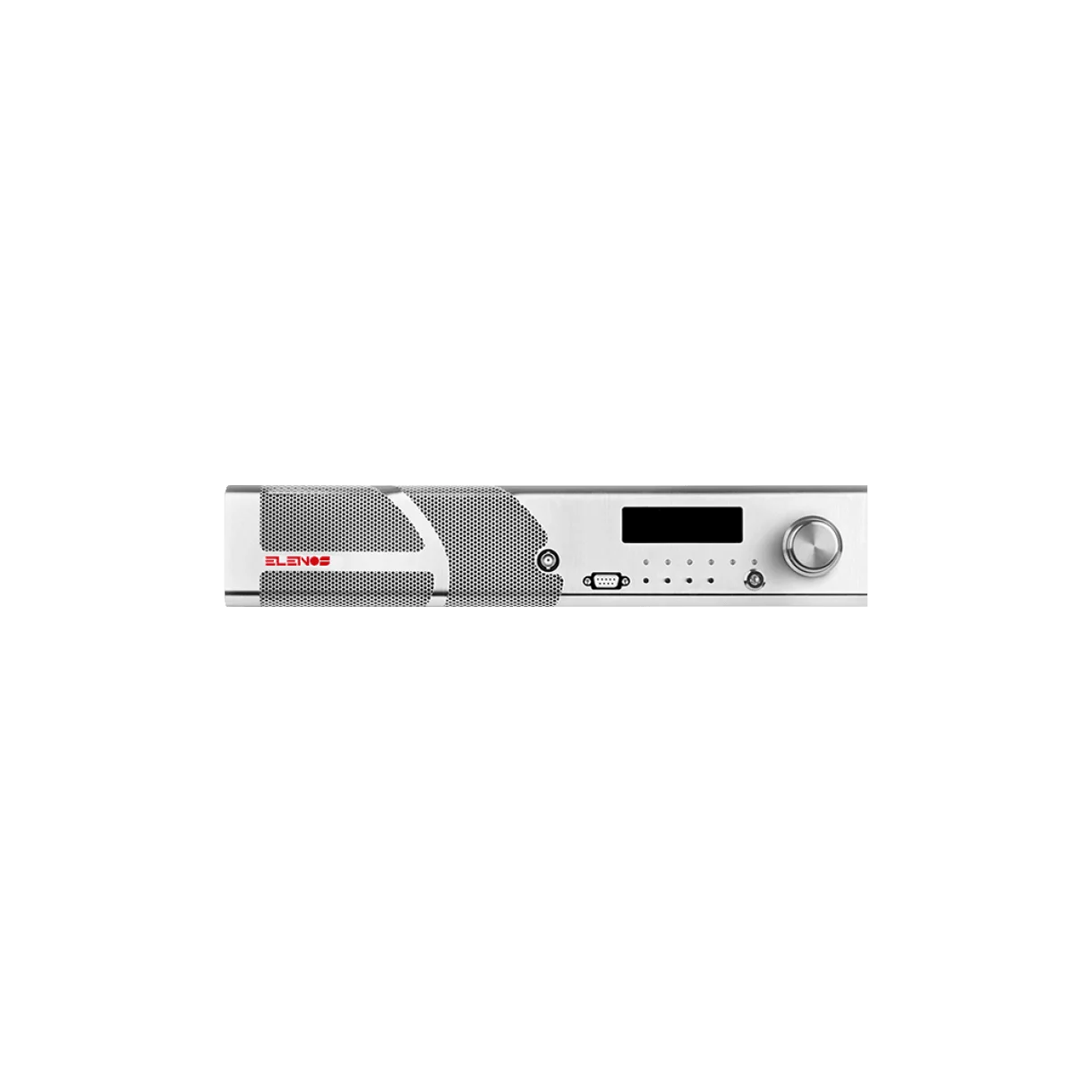

  • Adjustments From the frontal panel through OLED/from PC
  • Number of L-DMOS in amplifier stage 2
  • RF power stage technology ICEFET & ECOSAVING
  • Dimensions: Rack units 2 RU
  • Dimensions: W – H – D 48.5 – 8.5 – 58.5 cm / 19.11 – 3.35 – 23.05 inches
  • Weight 13.2 Kg / 29.1 lbs

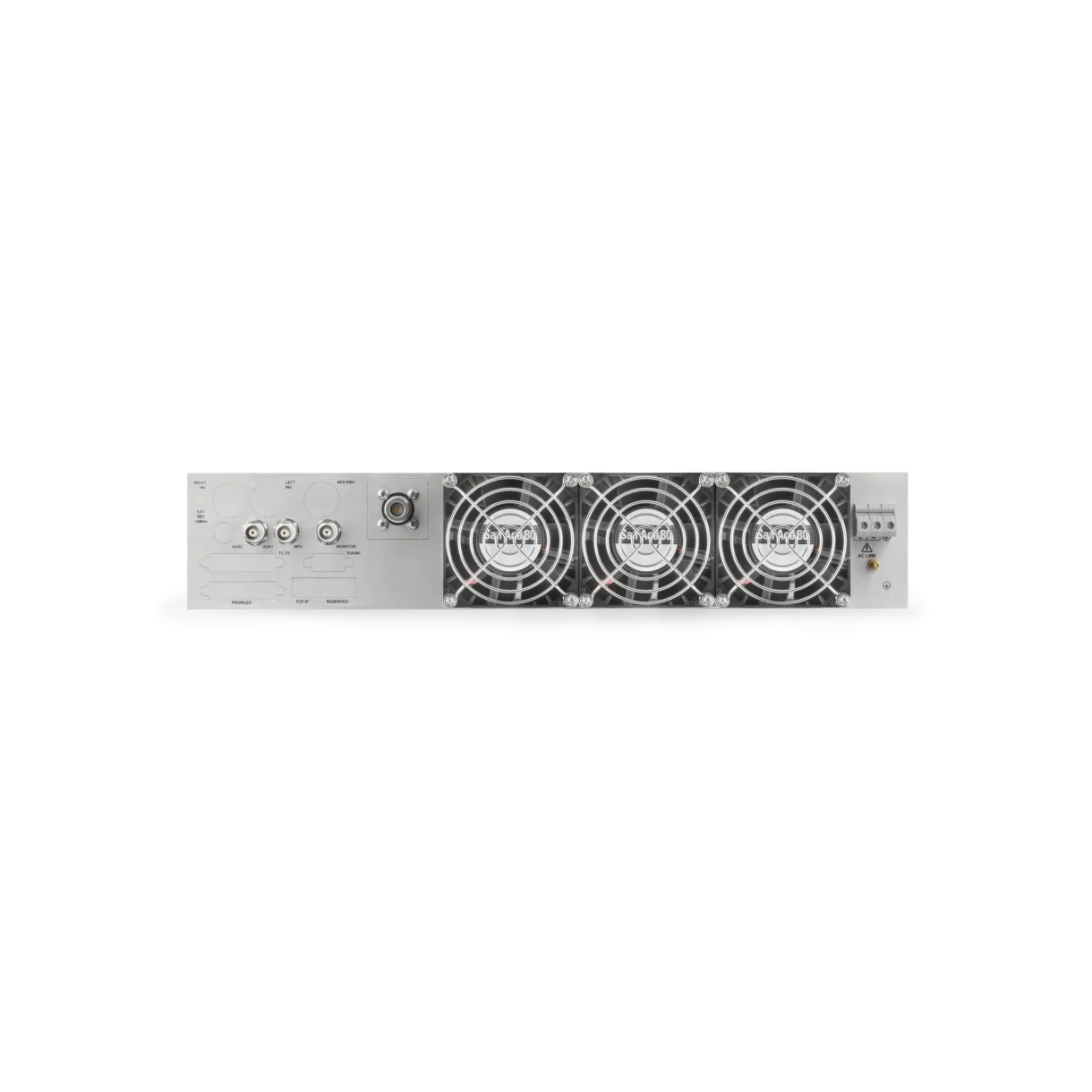

  • Number of cooling fans 3

The Indium series of transmitters boast a certifiable efficiency rate of 74%. That means savings in electrical, operating and cooling costs. Thanks to the lower operating temperature, the life of the transmitter is extended.

The Indium Series uses the planar technology for the entire RF section (RF modules, combiners, splitters and low-pass filter). This minimizes internal connections and soldering. That means increased stability, simplified maintenance and an overall increase in reliability. The chances of failure are severely reduced, and maintenance is simplified.
